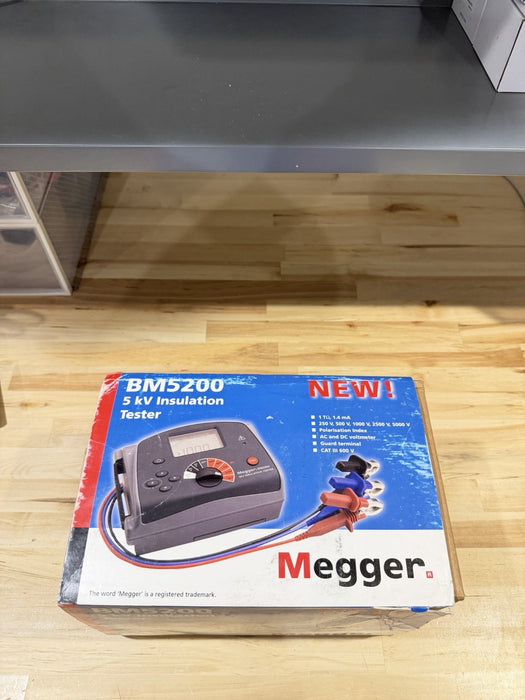

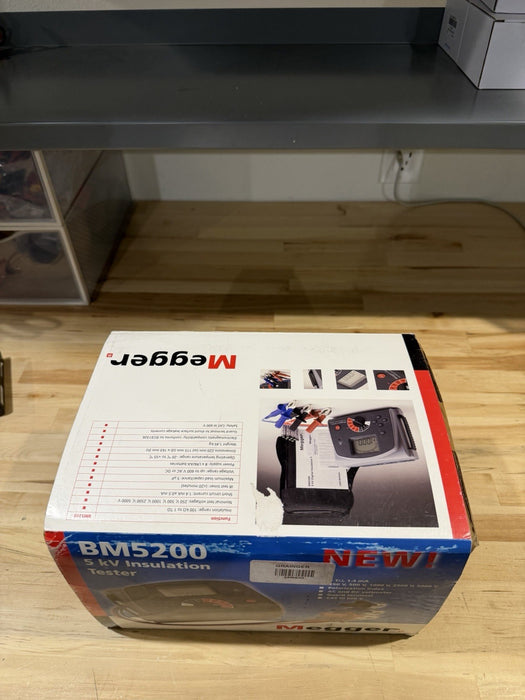

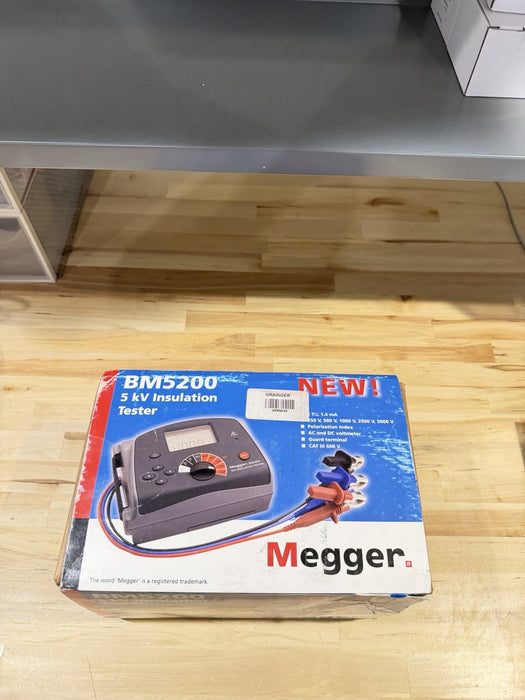

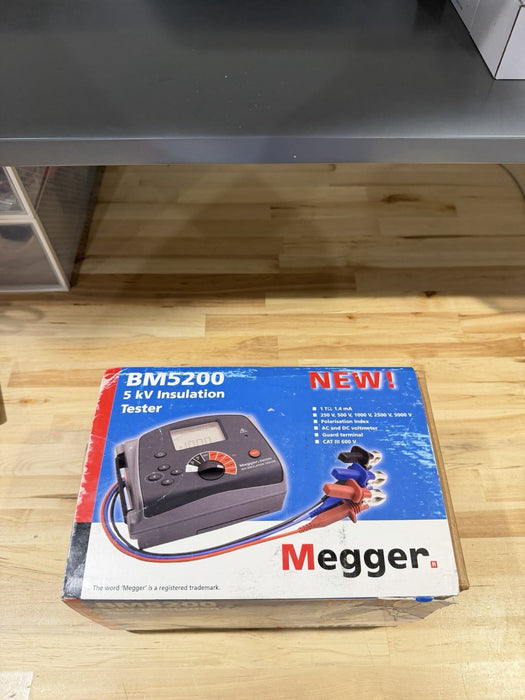

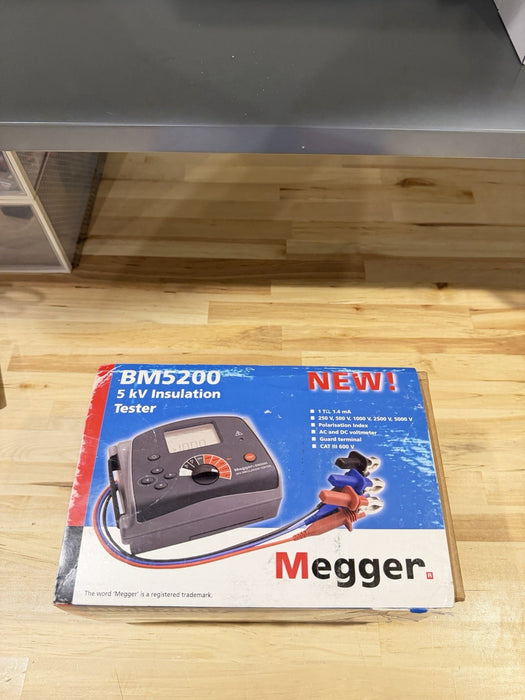

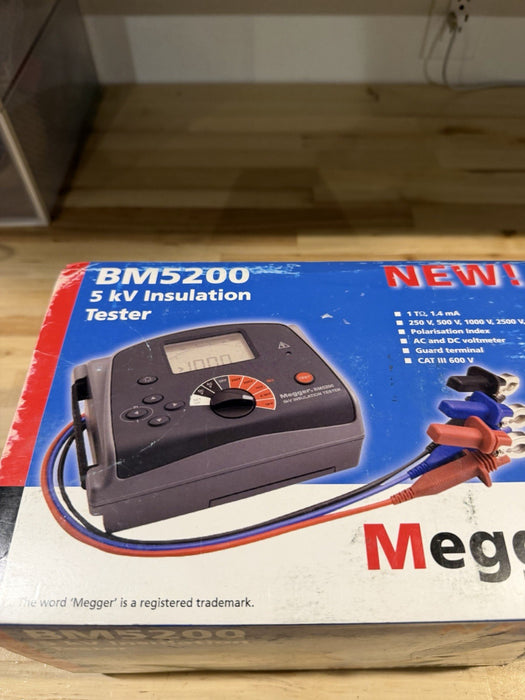

MEGGER BM5200 5KV INSULATION TESTER

The Megger BM5200 is a 5 kV insulation resistance tester for high-voltage insulation testing on cables, rotating machinery, transformers, switchgear, and industrial electrical equipment. This listing is written for buyers who need a portable insulation tester for preventive maintenance, commissioning checks, and insulation-resistance trending.

Specifications

• Brand: Megger
• Model: BM5200
• Instrument type: 5 kV insulation resistance tester / megohmmeter
• Test voltage ranges: 250 V, 500 V, 1000 V, 2500 V, and 5000 V DC
• Insulation resistance measuring range: 100 kΩ to 1000 GΩ / 1 TΩ
• Test modes: insulation resistance, polarization index, and variable timed test modes
• Display: digital display plus analogue arc style indication
• Safety: CAT III 600 V rated per Megger product information
• Power source: battery powered
• Connection feature: guard terminal to help reduce surface leakage effects

Key Features

• High-voltage insulation testing up to 5 kV
• Automatic discharge of capacitive circuits after testing
• External voltage indication and high-voltage warning functions support safer operation
• Guard terminal helps improve accuracy where surface leakage is present
• Portable battery-powered design for field maintenance work

Typical Applications

• Insulation testing of cables
• Motor and generator insulation checks
• Transformer and switchgear maintenance
• Industrial preventive maintenance
• Insulation resistance trending and commissioning checks

Condition & Listing Notes

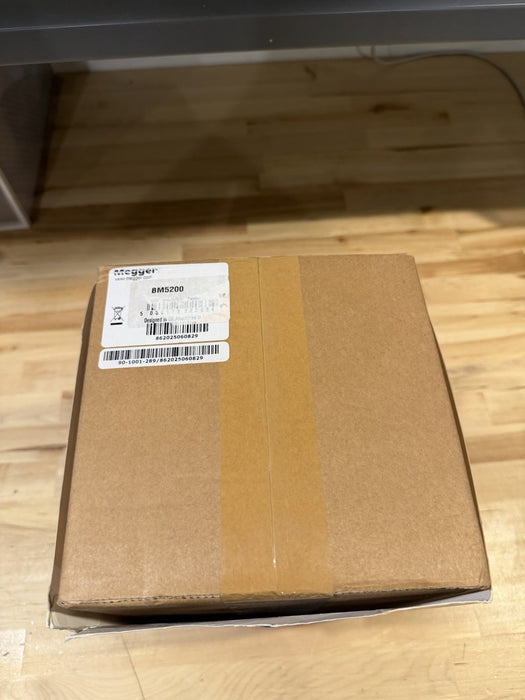

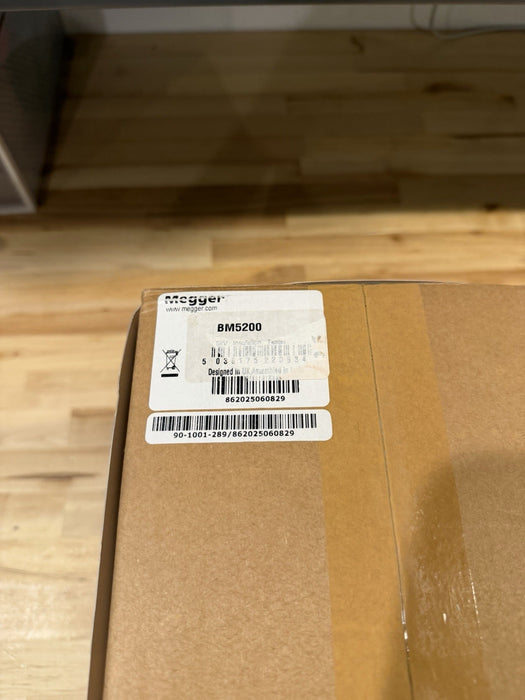

• Confirm whether leads, case, batteries, calibration certificate, and manual are included from the listing photos.
• For high-voltage insulation testing, use only with properly rated leads and qualified procedures.
• Calibration status is not implied unless valid documentation is included.
