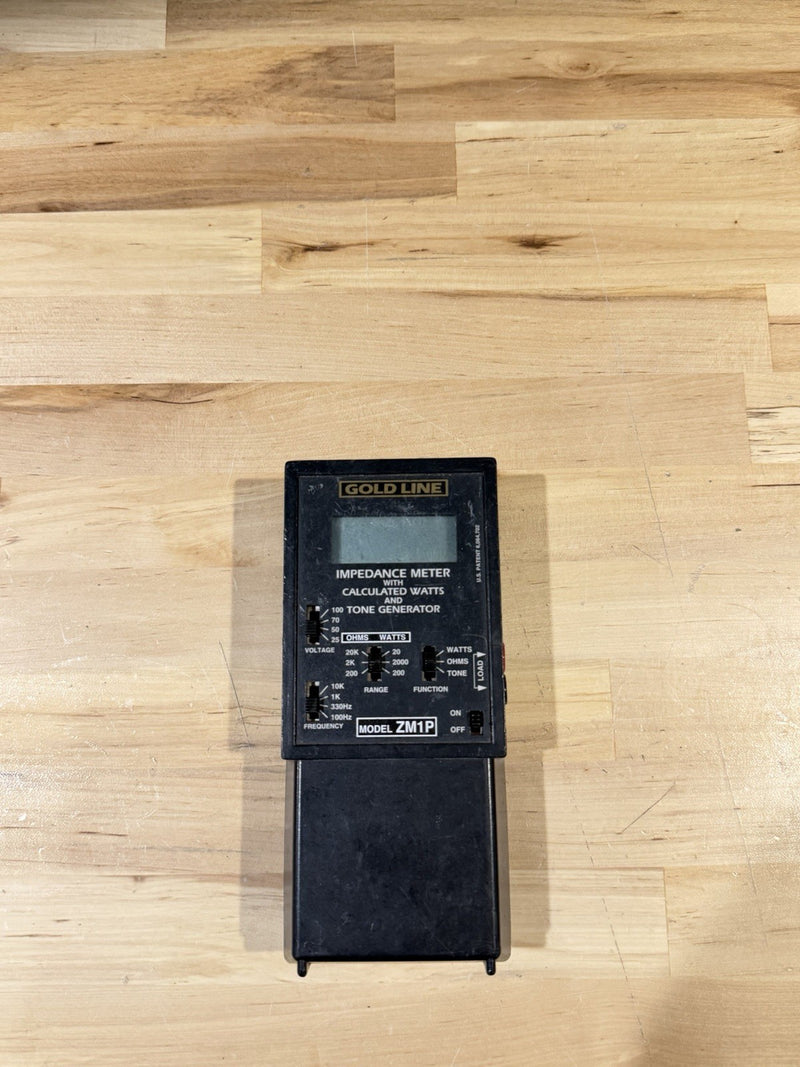

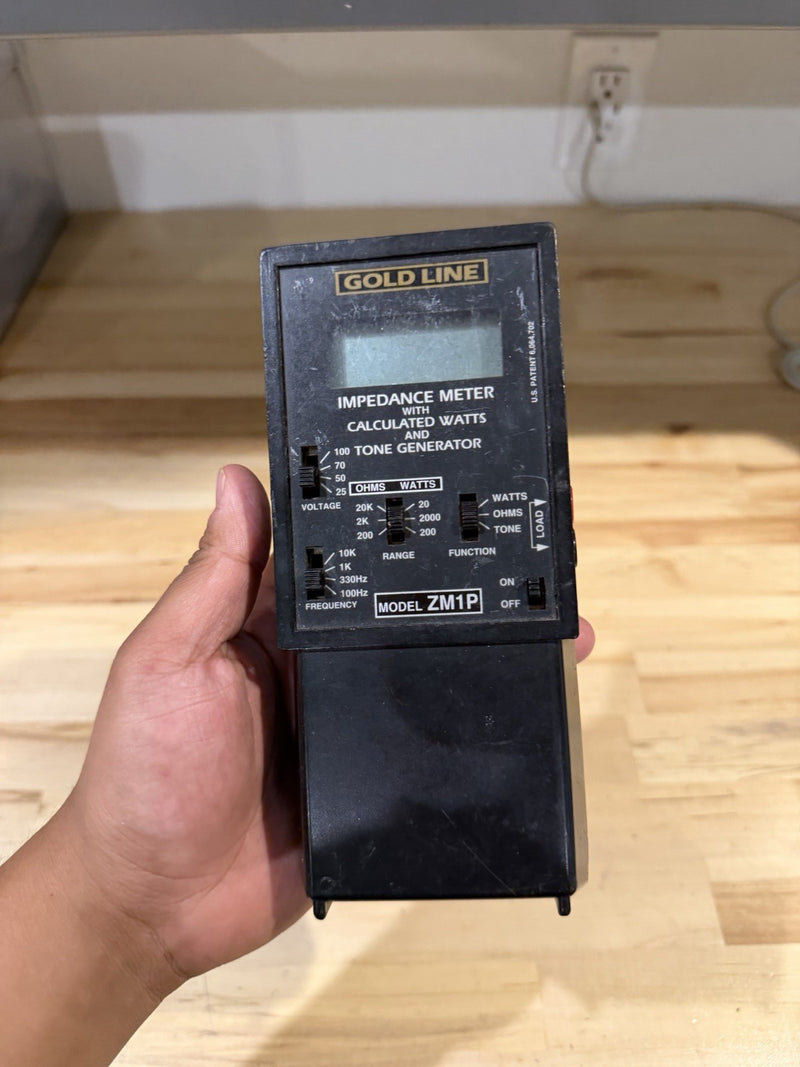

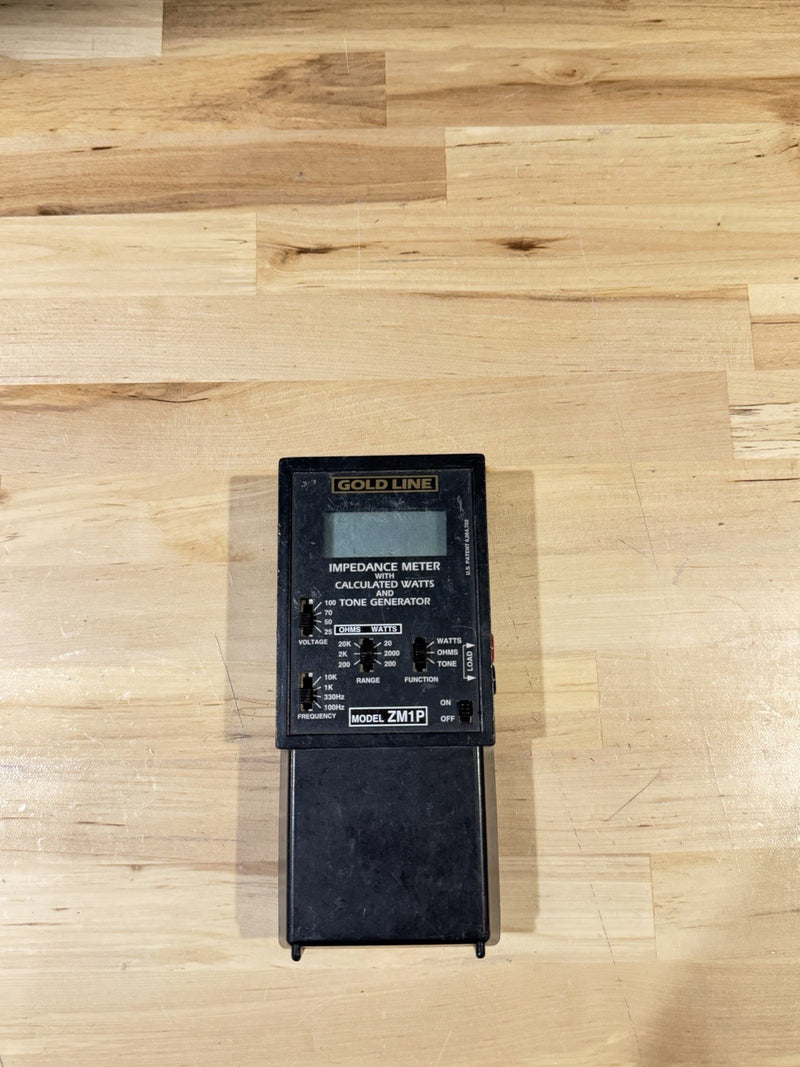

GOLDLINE ZM1P IMPEDANCE METER WITH LEADS FOR PARTS
The Goldline ZM1P Impedance Meter is an audio-system test instrument used to measure speaker-line impedance and calculate distributed-system wattage. This specific listing is marked WITH LEADS FOR PARTS, so it should be presented as an as-is repair, evaluation, or parts unit rather than as a guaranteed functional meter. The included leads are only those shown or described in the listing.
Specifications
- Manufacturer: Gold Line / Goldline
- Model: ZM1P
- Instrument type: Impedance meter with protection relay
- Measurement functions: Speaker-line impedance and calculated wattage
- Test frequencies: 100 Hz, 330 Hz, 1 kHz, and 10 kHz
- Typical accuracy: Impedance ±3%; wattage ±2%

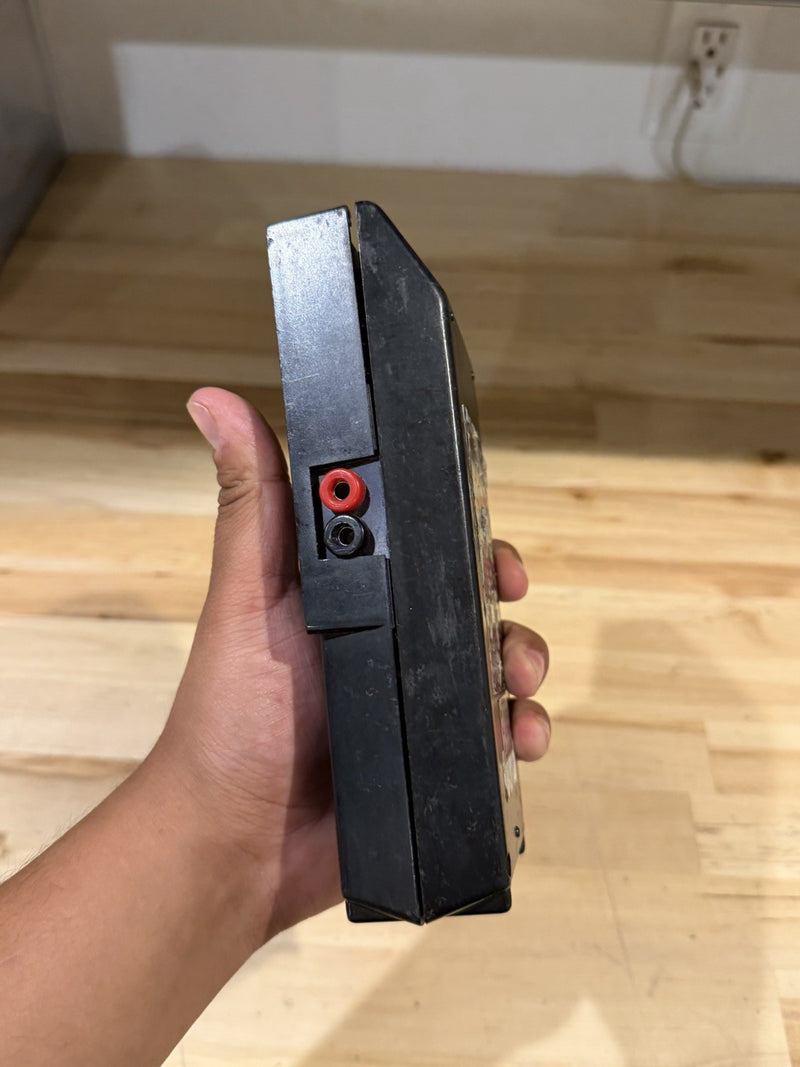

- Connectors: Load/output banana jacks
- Display: 3.5-digit LCD with low-battery indication
- Test tone: 400 mV / -6 dBu
- Power: Eight AA alkaline batteries
- Expected battery life: Approximately 35 hours in impedance mode and 23 hours in calculated-watts mode
- Condition from title: With leads; for parts
- Functional status: Not guaranteed unless separately tested and documented
Key Features
- Designed for checking distributed loudspeaker systems and speaker-line impedance
- Multiple test frequencies help evaluate different speaker-line conditions
- Calculated-watts function supports 25 V, 50 V, 70.7 V, and 100 V distributed audio systems
- ZM1P protection relay helps protect the instrument from accidental overload when functional
- For-parts positioning is appropriate for repair technicians or buyers needing components
Typical Applications
- Parts or repair evaluation for Goldline ZM1P meters
- Audio installation service benches
- Distributed speaker-line troubleshooting when repaired and verified
- School, facility, and commercial PA system maintenance
- Replacement lead or component sourcing, depending on condition
This ZM1P should be sold as-is for parts or repair. Do not describe it as calibrated, accurate, or ready for field use unless it has been tested, powered, and verified across the relevant impedance ranges.
