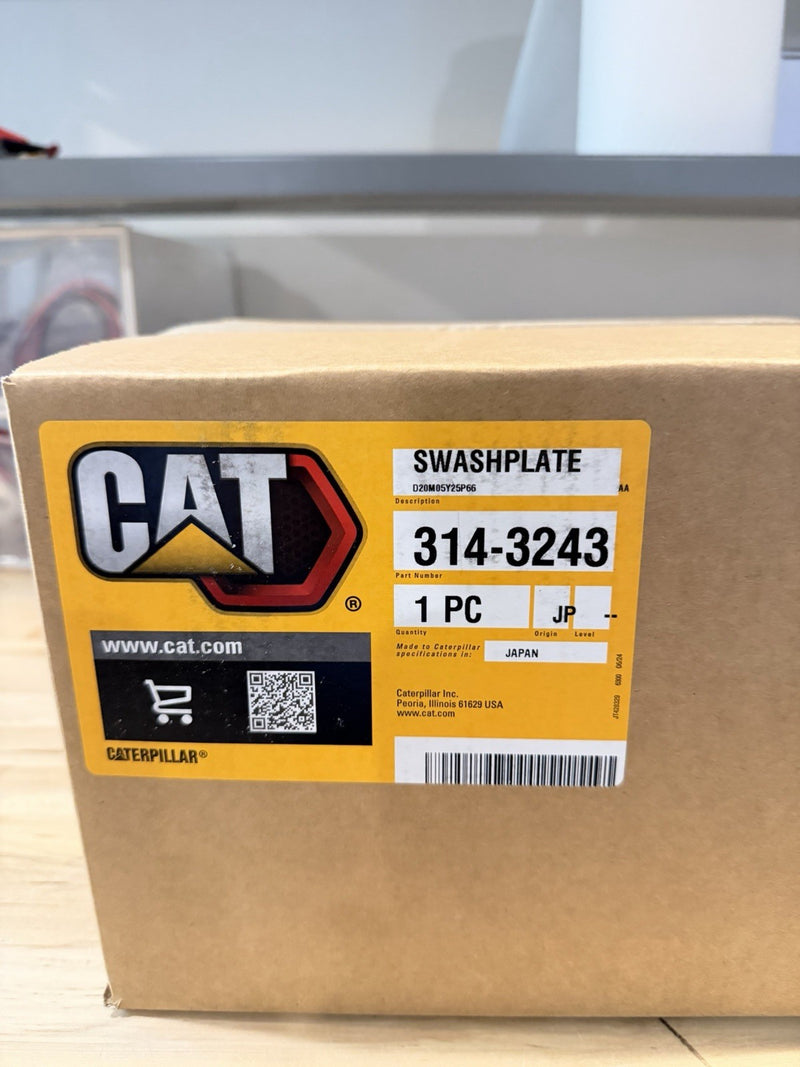

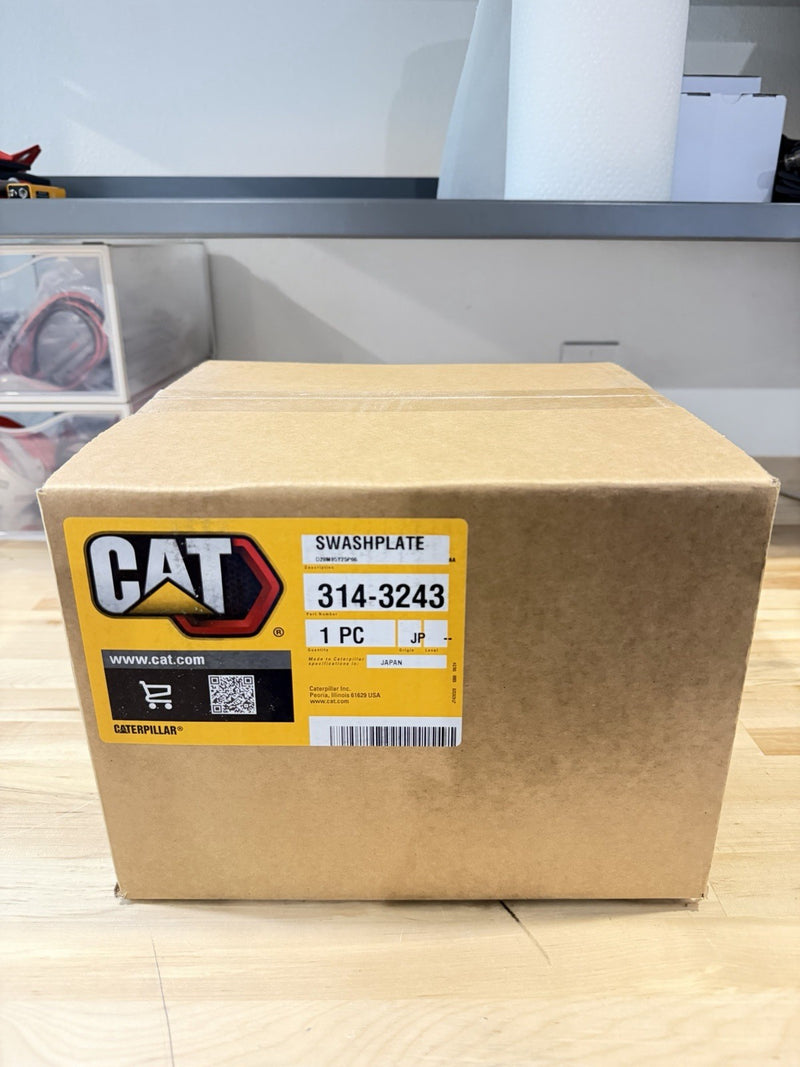

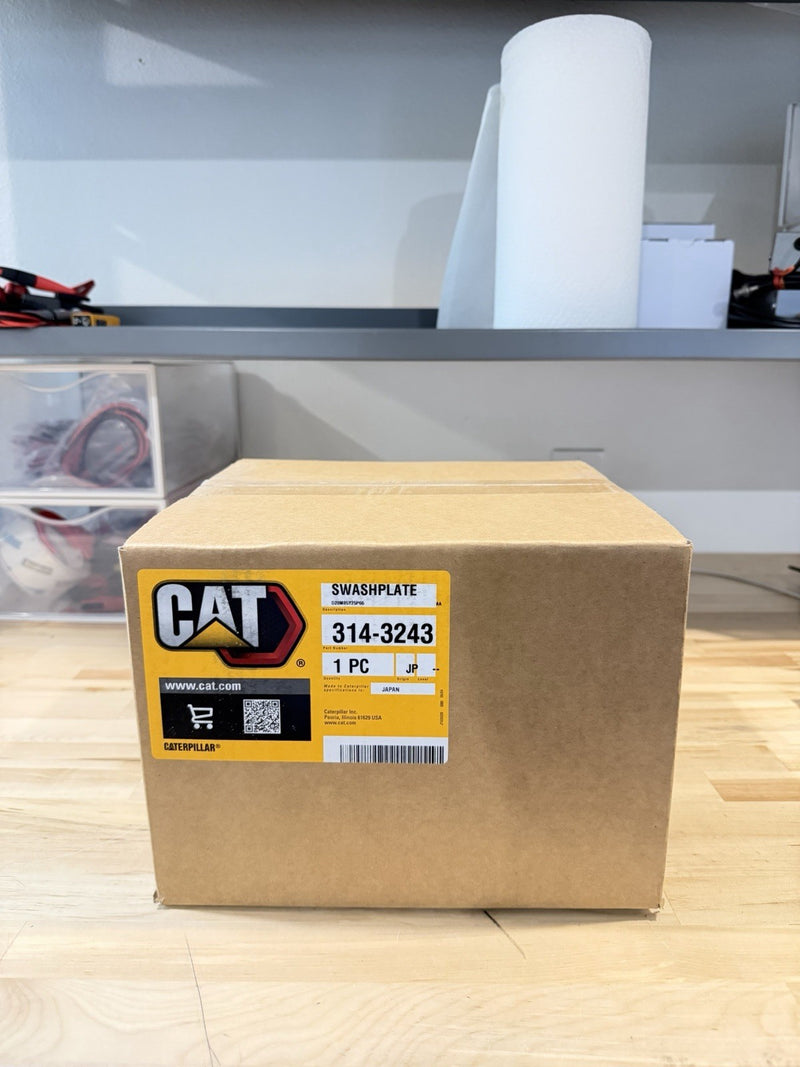

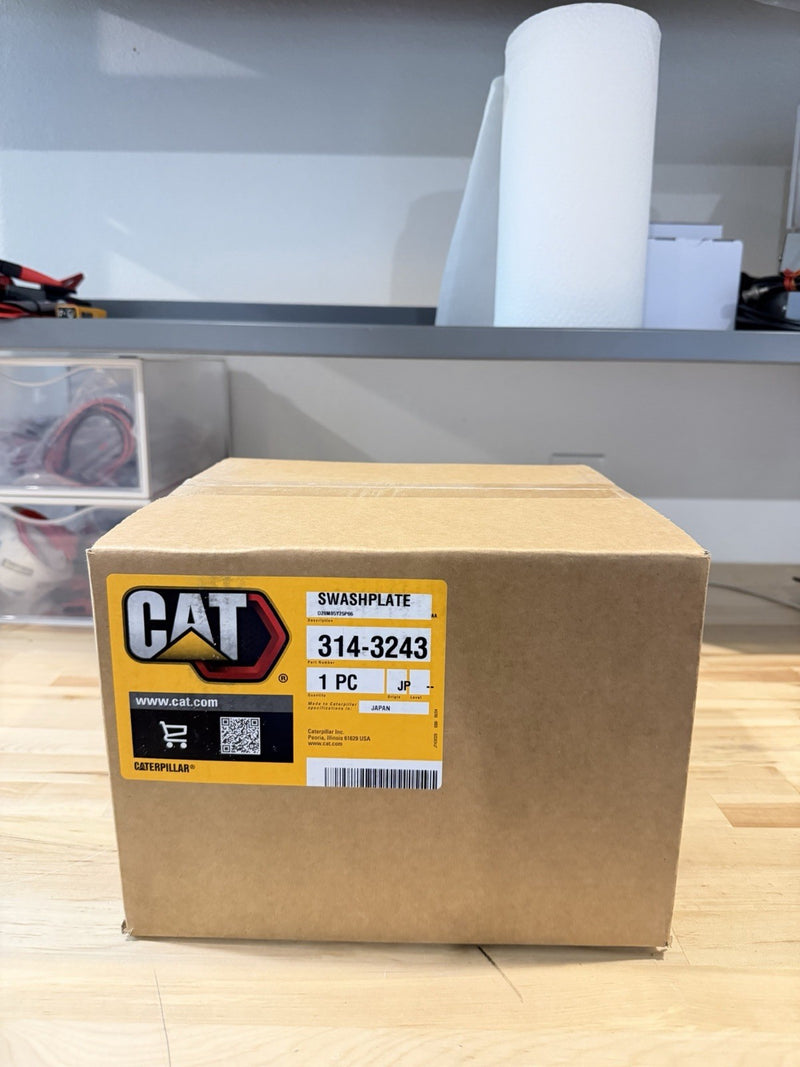

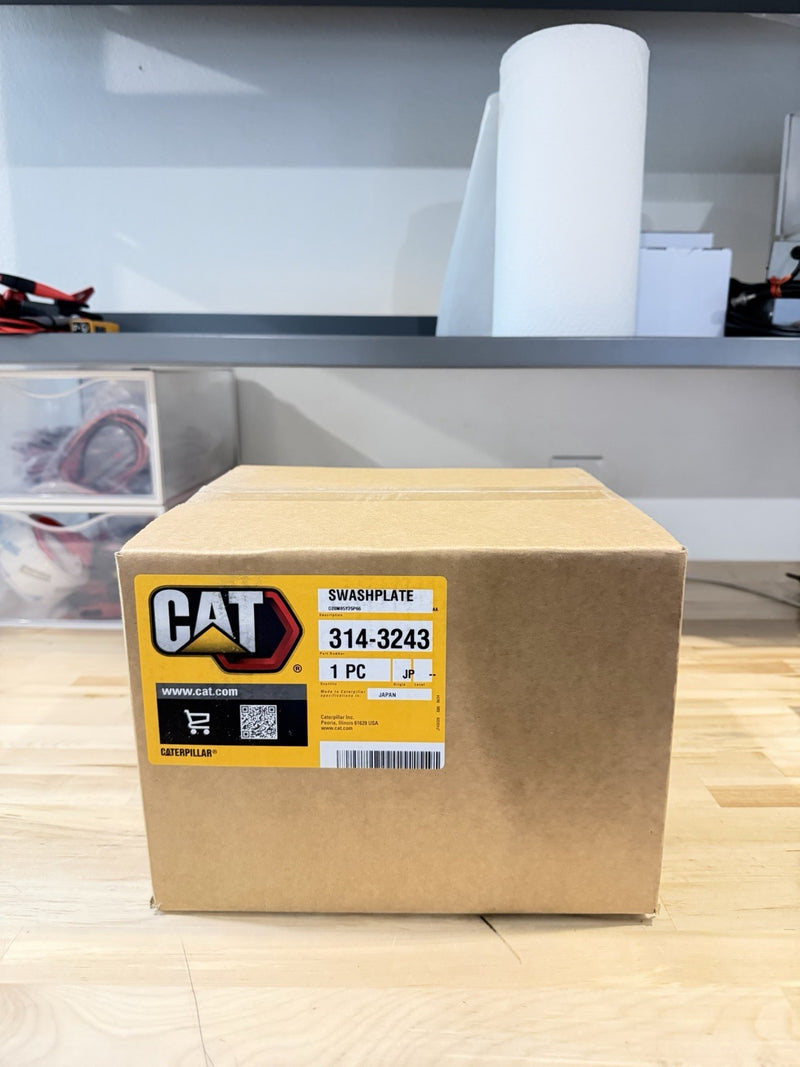

CAT 314-3243 DIAMETER SWASHPLATE

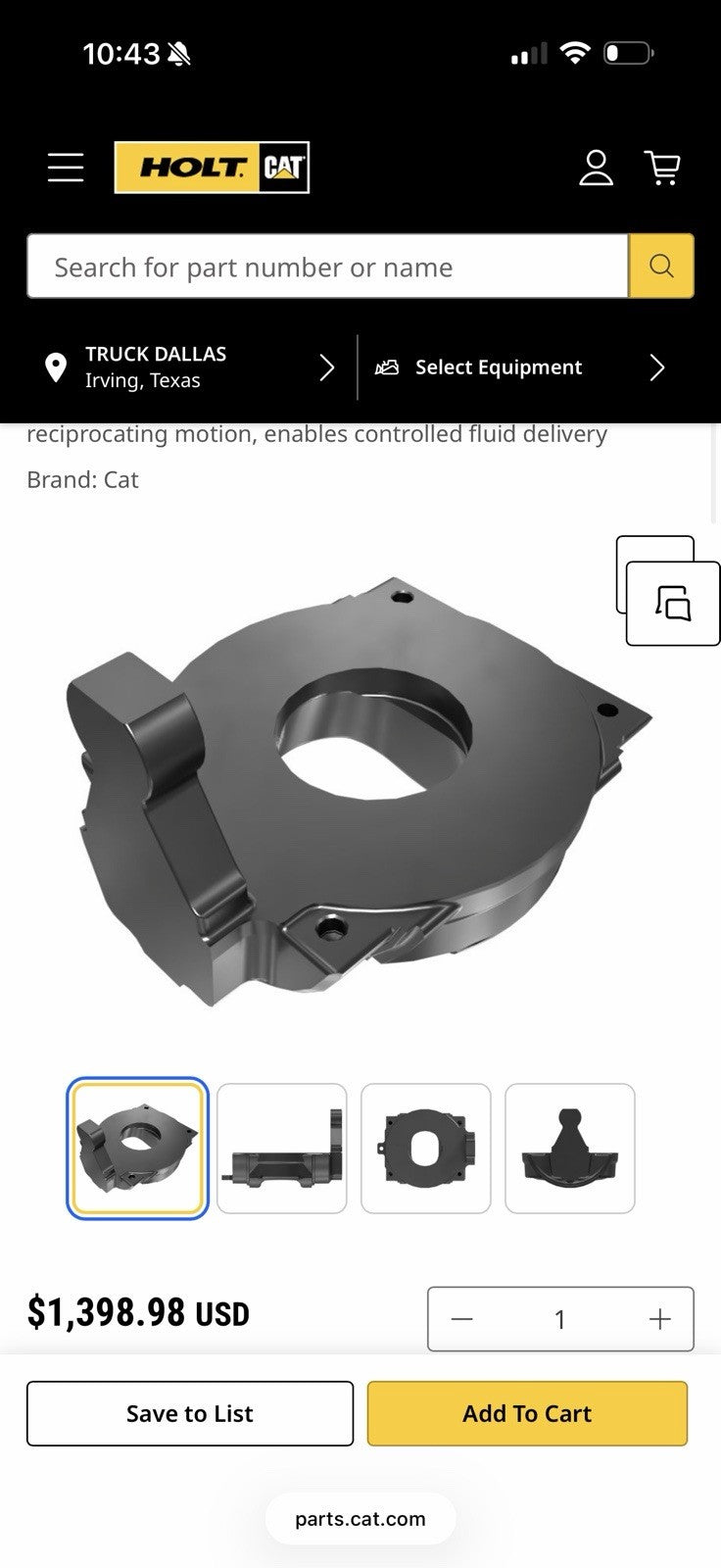

The CAT 314-3243 Swashplate is a genuine Caterpillar piston pump component that converts rotary motion into reciprocating piston motion for controlled hydraulic fluid delivery. Cat identifies this part as a 173 mm outer diameter steel swashplate for use with M10 x 1.5 hardware.

Specifications

• Manufacturer: Caterpillar
• Part Number: 314-3243
• Product Type: Piston pump swashplate
• Outer Diameter: 173 mm
• Material: Steel plate
• Hardware Reference: For use with M10 x 1.5 hardware
• System: Hydraulic piston pump
• Fitment Verification: Machine and pump assembly confirmation required

Key Features

• Converts rotary motion into reciprocating piston movement
• Supports controlled hydraulic fluid delivery in piston pumps
• Steel construction for heavy-duty hydraulic applications
• Genuine Cat service part for pump repair workflows

Typical Applications

• Piston pump repair
• Hydraulic system maintenance
• Heavy equipment pump rebuilds
• Service replacement during hydraulic overhaul

Cross References

• No official public cross references were verified beyond CAT 314-3243.

Machine Compatibility

• Compatibility must be confirmed by Caterpillar equipment serial number and pump assembly documentation.

Engine Platforms

• Not engine-specific; this is a hydraulic piston pump component.

The CAT 314-3243 Swashplate should be matched to the exact pump assembly before installation to ensure correct hydraulic pump operation.
