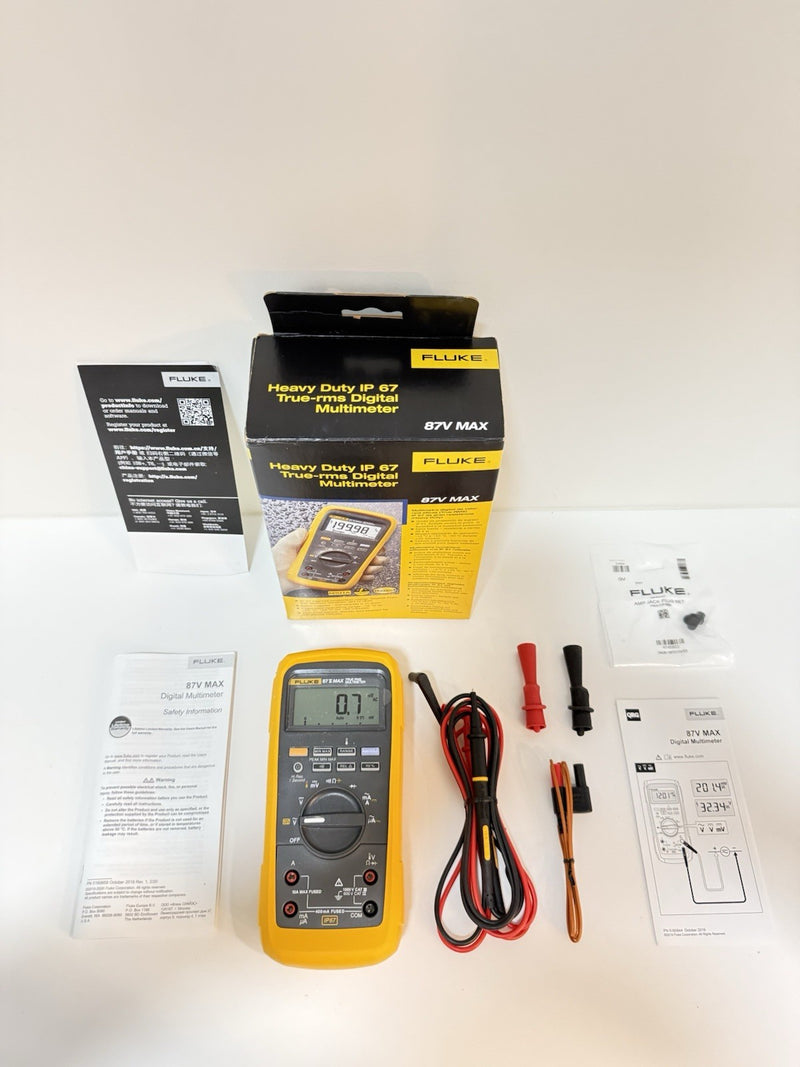

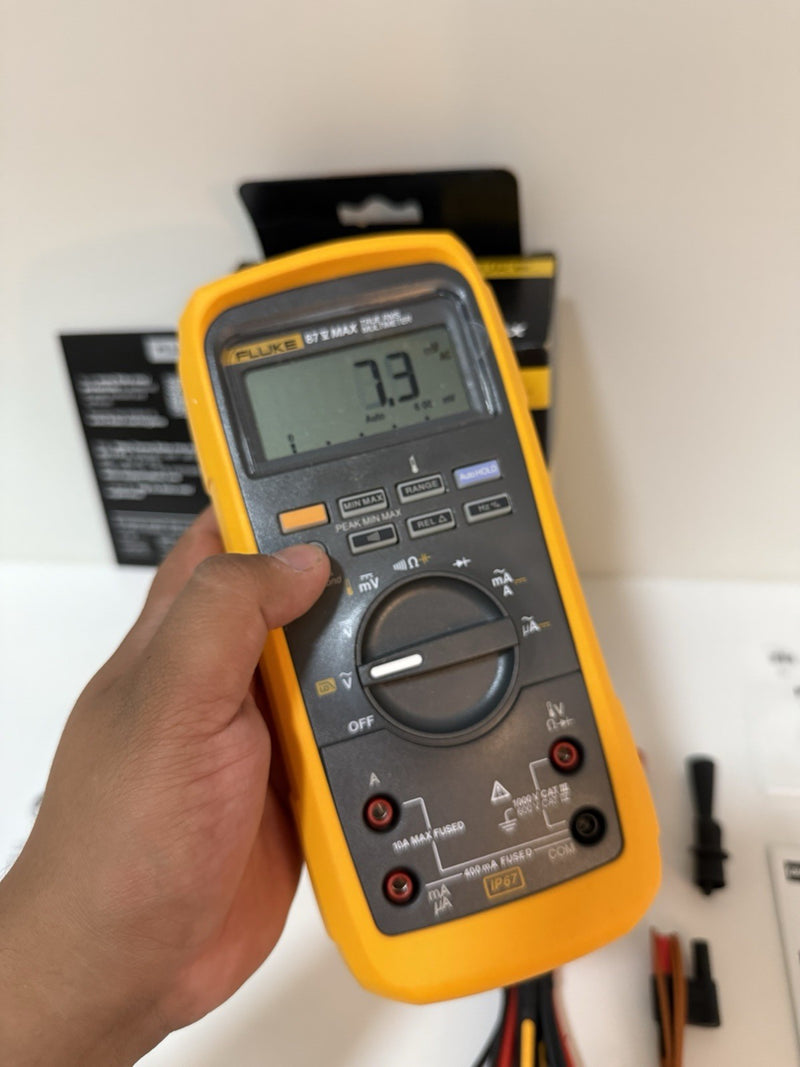

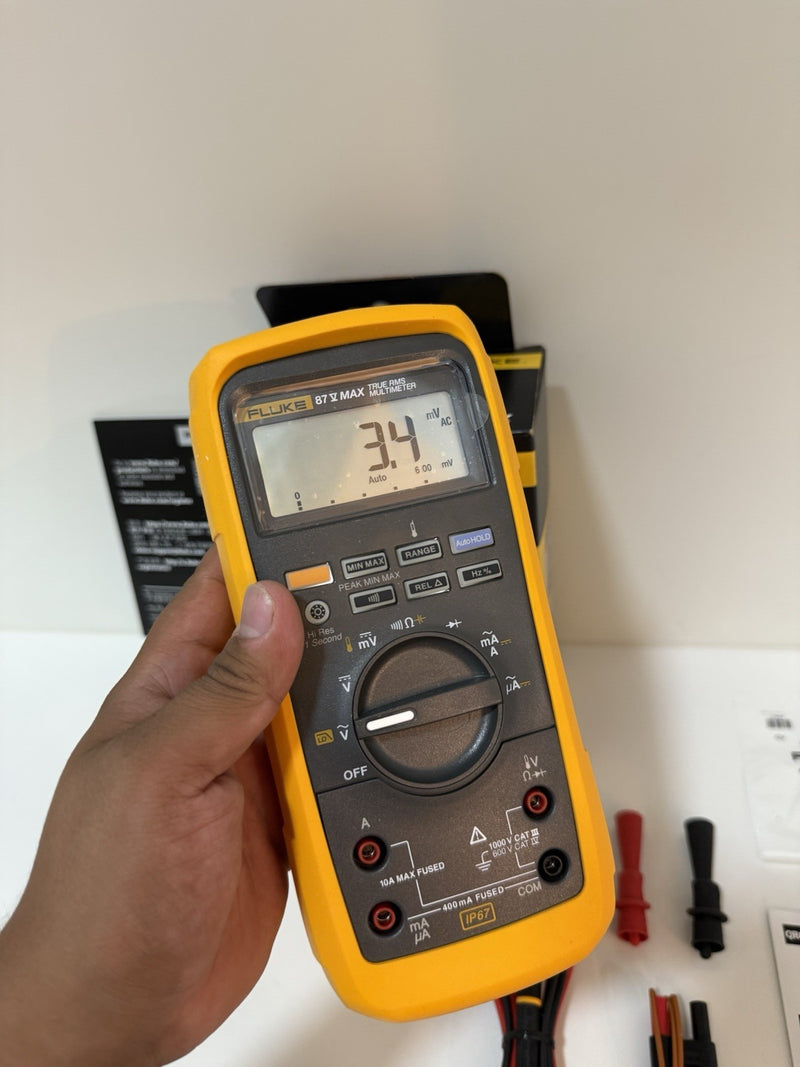

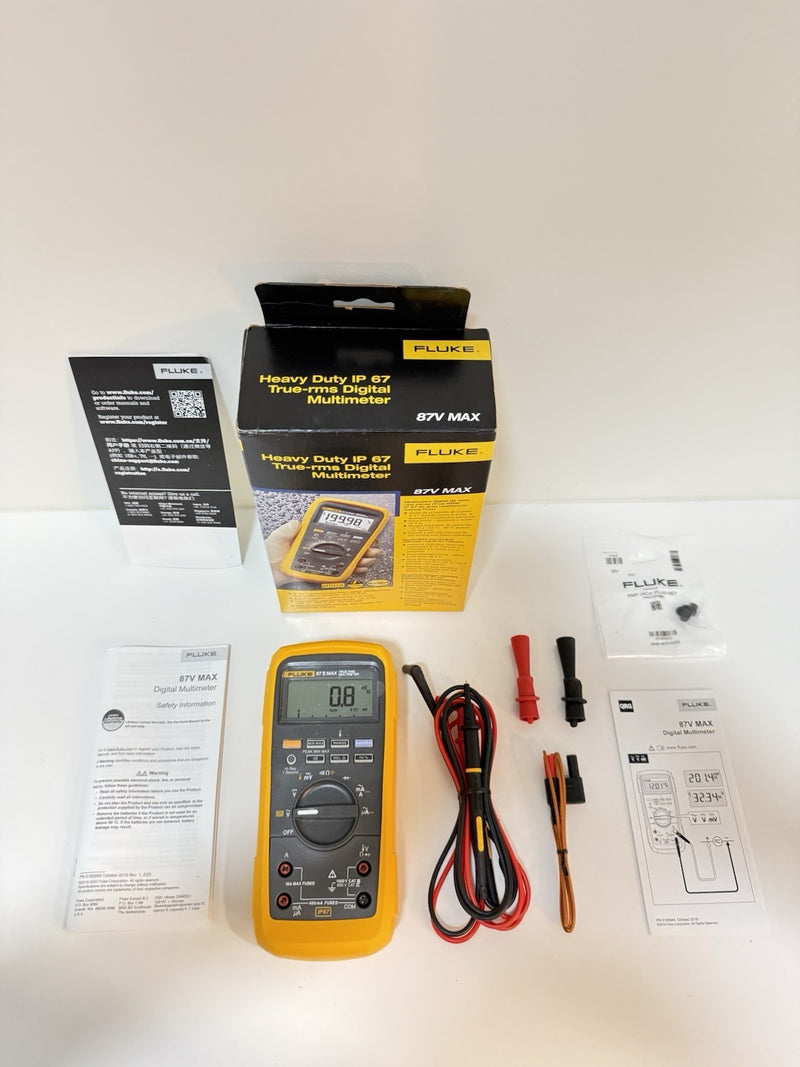

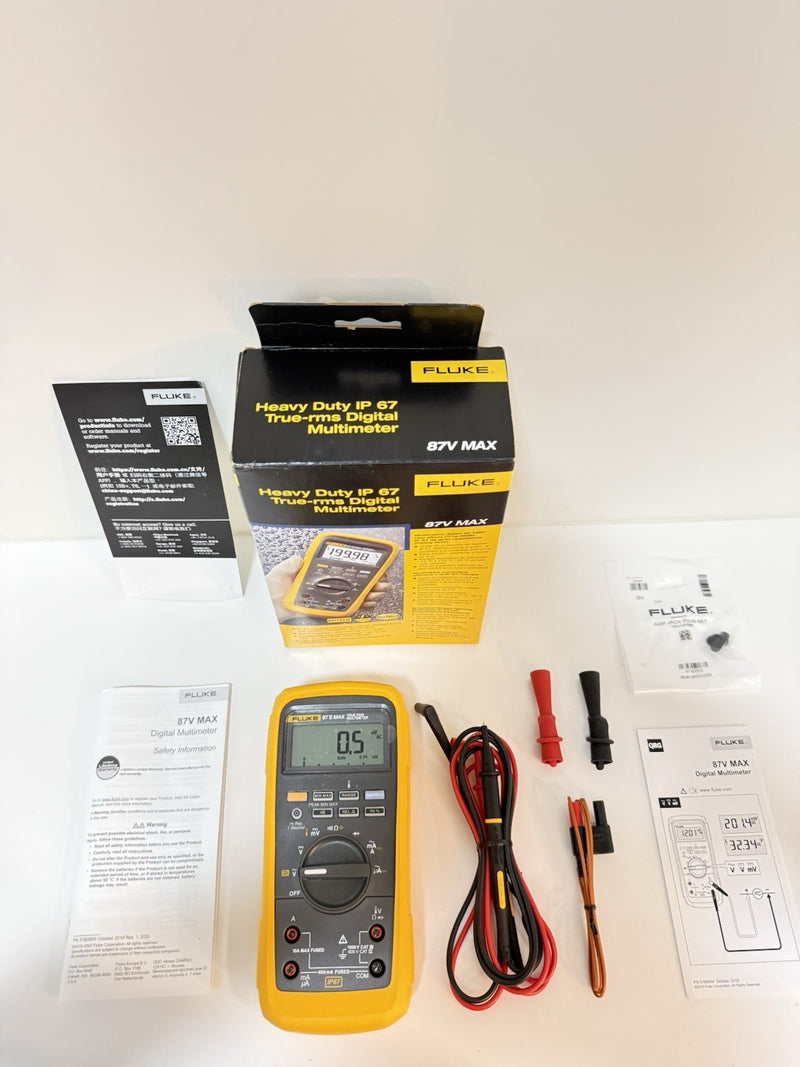

FLUKE 87V MAX TRUE RMS MULTIMETER WITH LEADS & CLIPS

The Fluke 87V MAX True-RMS Multimeter with leads and clips offers rugged industrial measurement capability with the accessories needed for everyday electrical troubleshooting, panel checks, and maintenance work.

Specifications

• Model family: Fluke 87V MAX True-RMS Rugged Digital Multimeter.
• Maximum voltage: 1000 V AC and 1000 V DC.
• DC voltage accuracy: up to ±(0.05% + 1).
• AC voltage accuracy: up to ±(0.7% + 4) true-RMS with 20 kHz bandwidth and low-pass filter.
• Current range: up to 10 A continuous, 20 A for 30 seconds maximum.
• Resistance range: 0.1 Ω to 50 MΩ; capacitance range 0.01 nF to 9,999 µF.
• Frequency range: 0.5 Hz to 199.99 kHz; duty cycle up to 99.9%.
• Temperature measurement: -200 °C to 1090 °C / -328 °F to 1994 °F, excluding probe.
• Safety rating: CAT III 1000 V / CAT IV 600 V.
• Rugged rating: IP67 dustproof/waterproof case, 4 m drop rating, backlit keypad, and extended battery life.

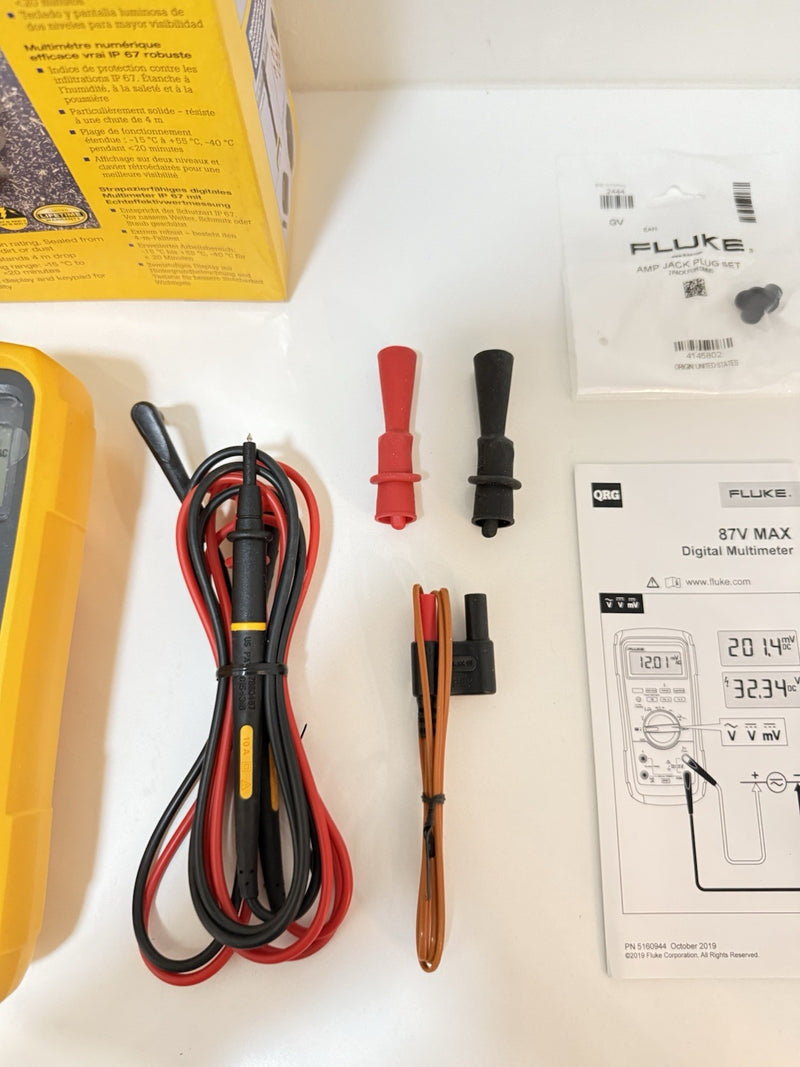

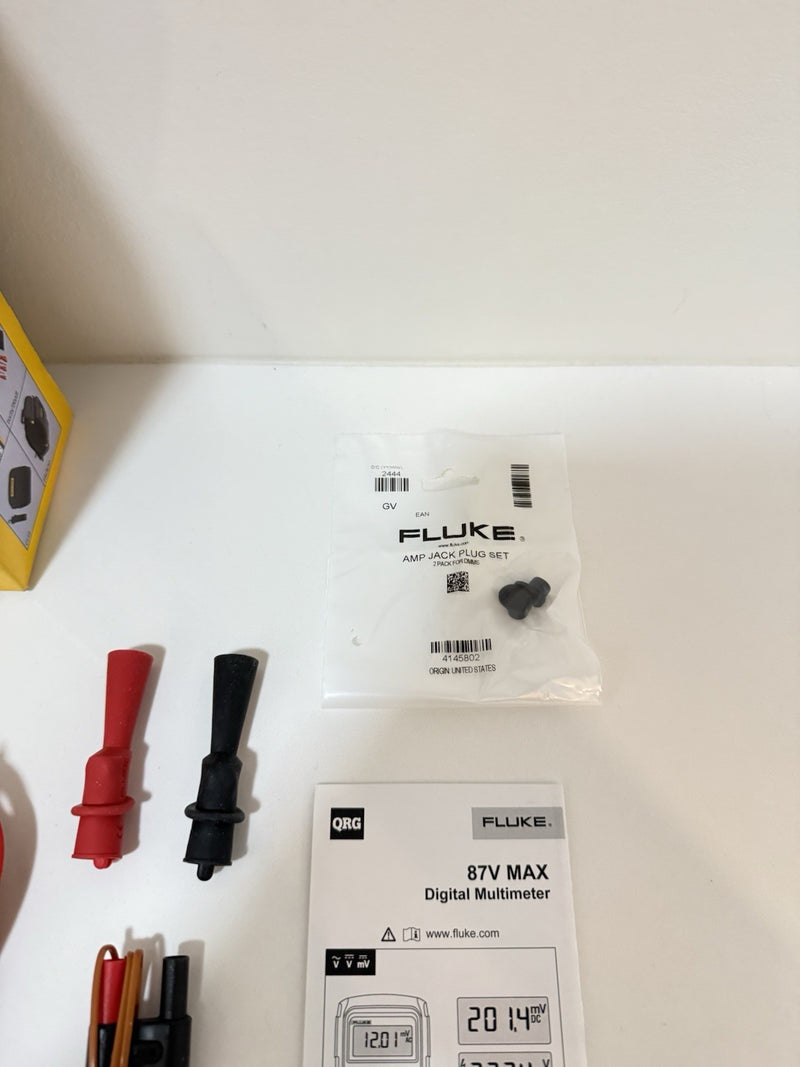

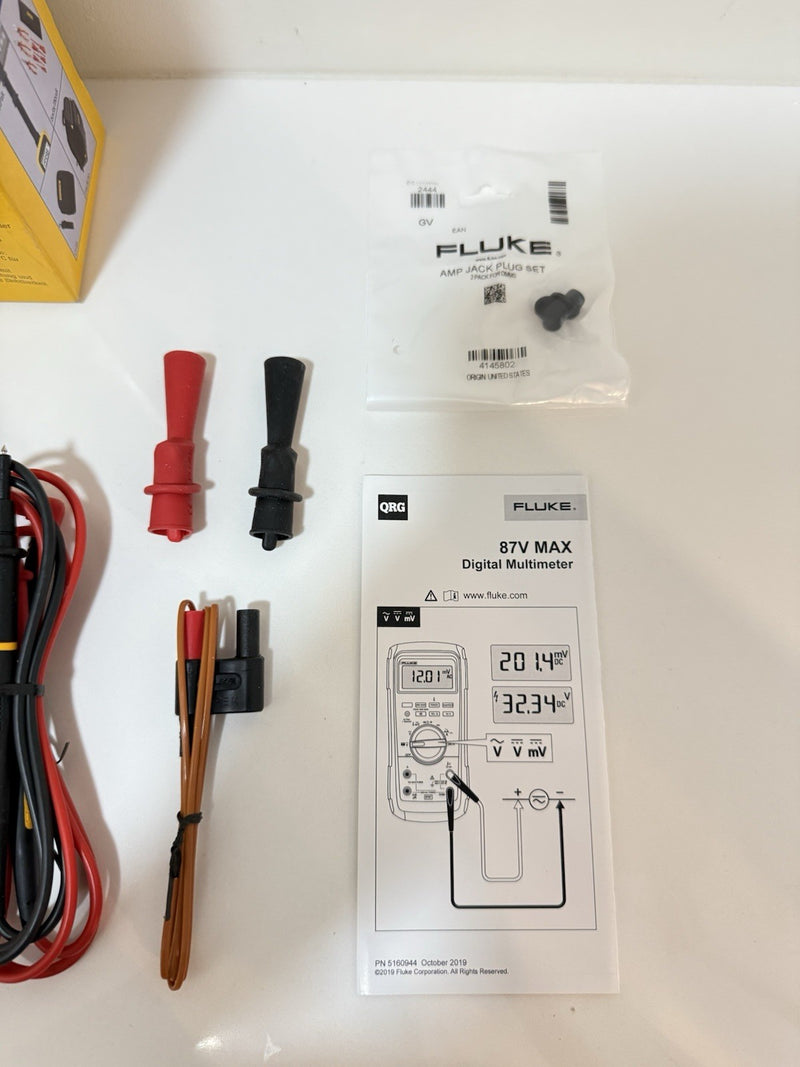

• Accessory note: title states leads and clips; confirm exact lead and clip models from item photos.

Key Features

• Rugged MAX housing designed for wet, dusty, and demanding field conditions.
• True-RMS measurements support accurate troubleshooting on distorted waveforms and non-linear loads.
• Low-pass filter supports motor-drive and VFD troubleshooting in electrically noisy locations.
• Integrated temperature measurement with compatible Type-K probe.
• Backlit keypad and display improve visibility in dark panels, plants, and outdoor work areas.
• Min/Max/Average, Peak Min/Max, Hold, relative mode, diode test, continuity, frequency, and duty cycle functions.
• Lead and clip configuration helps technicians make stable connections during voltage, resistance, continuity, and control-circuit checks.

Typical Applications

• Heavy-duty industrial maintenance and field service.
• Outdoor electrical work where dust, moisture, and drop resistance are important.
• VFD, motor-control, and plant automation troubleshooting.
• Power distribution, control cabinets, facility electrical systems, and equipment maintenance.
• Technicians who need a rugged true-RMS meter with temperature and accessory compatibility.

This configuration is a practical choice for technicians who want the rugged 87V MAX meter and basic connection accessories without relying on a larger kit.
